Alphacool Eiswand 360 CPU - black

The Eiswand is Alphacool’s complete water cooling set for your CPU.

Thanks to the included quick-release connectors, it’s easy to connect additional components to the loop, such as the Eiswolf, Alphacool’s pre-filled graphics card cooler, or an additional radiator. Finding a fitting graphics card cooler is easy with the configurator at www.Alphacool.com

The core component of the Eiswand is the external 360mm full-copper radiator, which is equipped with six Eiswind fans. This means the system’s cooling power is very high, enough for any combination of CPU and GPU. Copper offers double the heat capacity of the aluminium often used in cheap systems. The six Eiswind fans are built to operate in Push&Pull configuration, to guarantee optimal radiator ventilation.

The illuminated reservoir sits directly on the external radiator. There, the fill level can easily be checked through the large viewing window, and the fill port on the upper surface makes it easy to fill the loop.

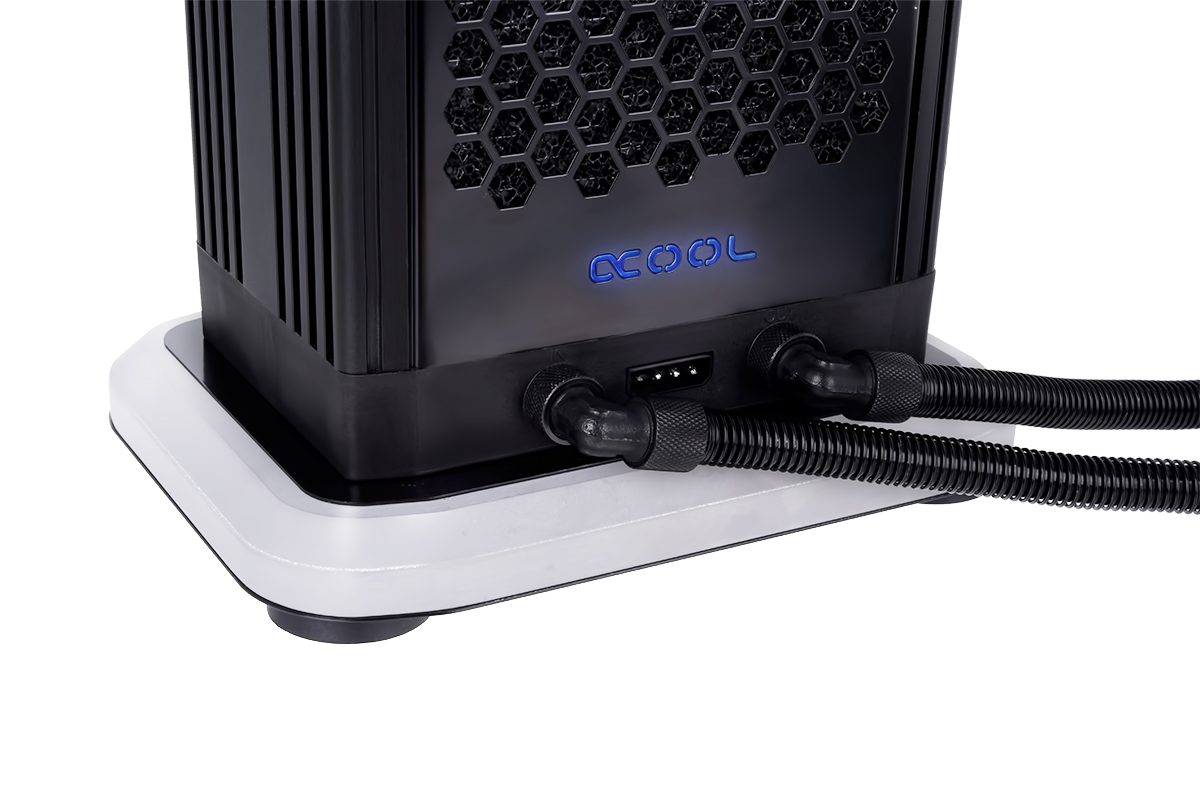

The elegant, likewise illuminated bottom of the Eiswand contains two DC-LT silent pumps, which are also used in several of Alphacool’s other systems. For example, they are used in the Alphacool Eisbaer, often praised for its low noise level. The pumps’ capacity is so high that even if one of them fails, there is no noticeable loss of cooling power. One pump is strong enough to keep a simple cooling loop going. This guarantees top-level security for your whole system.

The included XP3 cooler is among the strongest coolers on the market and is compatible with all Intel and AMD sockets. Of course, the set also includes all the other necessary parts, such as a 11/8mm 4m-long hose, corresponding connectors, and the required coolant. A silent adapter also allows for nearly noiseless operation. The adapter severely restricts the pumps and fans, but only diminishes the cooling power slightly. The Alphacool Eiswand gives you an all-around carefree package for your system.

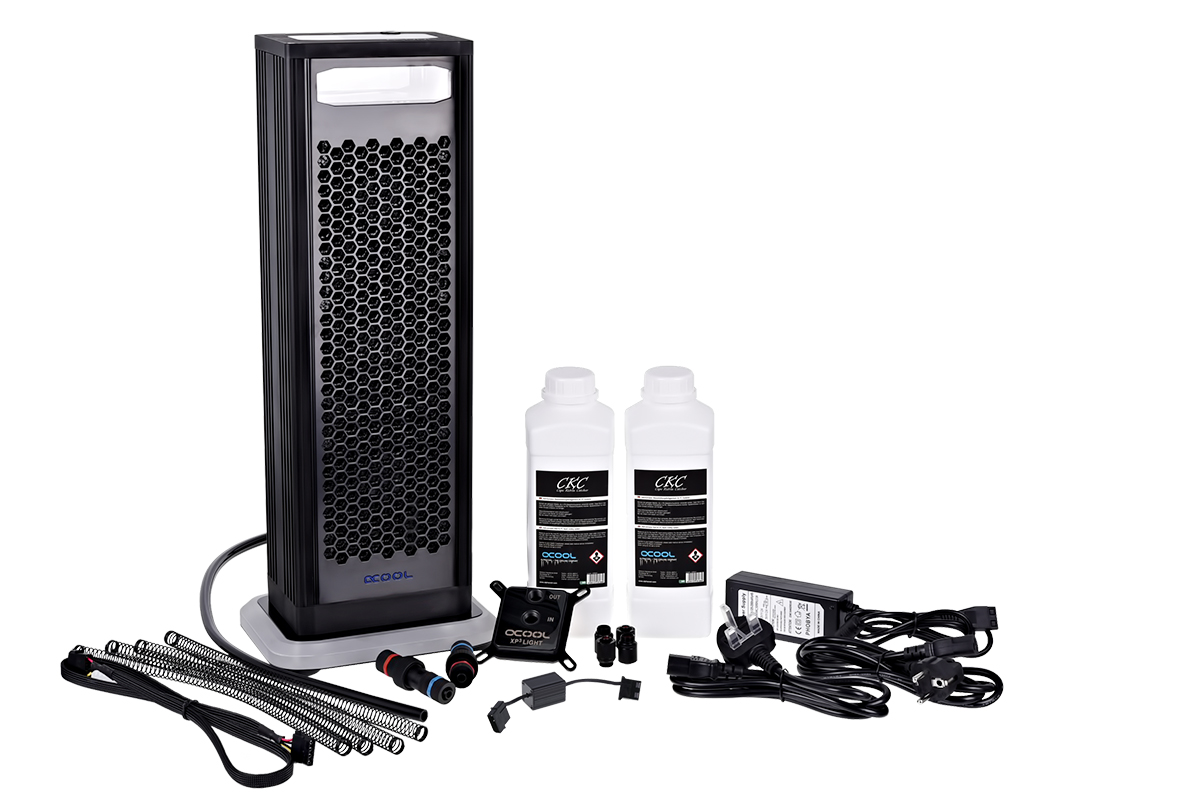

Technical Details

• 1x 360mm XT45 full-copper radiator
• 6x Eiswind fans 1100/700 RPM
• 1x XP3 CPU cooler
• 1x external power supply
• 1x 4-pin molex extension
• 4x 11mm Anti-kink springs
• 4m 11/8mm tubing
• 4x 11/8mm straight connectors G 1/4"
• 1x Silent Adapter 7.5V
• 2x Quick-release connectors
• 2x 1L Celvin Catcher coolant

Scope of Delivery

• 1x Alphacool Eiswand 360 CPU - black

Manual

Attention: The manufacturer Mayhems advises that Mayhems fluids, especially the Aurora line of products, have been manufactured and distributed solely for show and modding purposes. These should not be utilized in the system for more than 14 days.

We would also like to advise that Mayhems fluids can damage water cooling products, and using Mayhems fluids can thereby void the warranties offered by the following manufacturers: Koolance, Phobya, Alphacool, Aqua Computer, Watercool.

Damages such as: clogging, corrosion of aluminium radiators, deterioration of glued containers, etc., are a consequence of the use of Mayhems, but will not be reimbursed by Mayhems. Use is therefore at one’s own risk.
